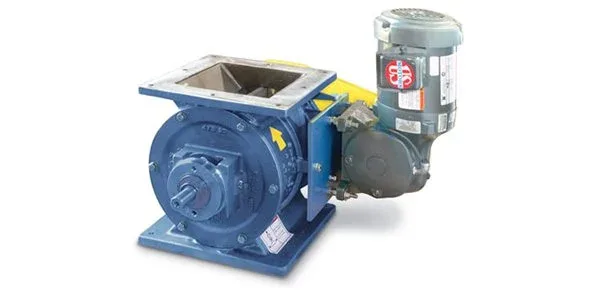

The Versatility of Magnum Systems’ Rotary Valves

When is a rotary valve an airlock, airlock feeder, or simply a feeder? The answer lies in its application. Rotary valves are highly versatile components, capable of playing multiple roles depending on how they are integrated into pneumatic conveying systems. At Magnum Systems, we specialize in designing and building rotary valves that adapt seamlessly to your operational needs.

Despite their adaptability, rotary valves are often misunderstood. Many refer to them interchangeably as airlocks, airlock feeders, or feeders, but these terms are not synonymous. Instead, the specific application of a rotary valve determines its function and, consequently, how it is named. Below is an overview of the various roles a rotary valve can fulfill within a system:

Rotary Valves as Feeders

When used as a feeder, a rotary valve meters material in a controlled and linear manner. The speed of the valve’s rotation directly correlates with the volume of material discharged. However, it’s essential to consider factors such as upper RPM limits and the bulk density of the material being handled to maintain accuracy. Feeders are necessary for applications that demand consistent material flow, and while rotary valves can fill this role, other types, such as loss-in-weight feeders, vibratory trays, or screw conveyors, may also be employed depending on the system’s requirements.

Rotary Valves as Airlocks

A rotary valve becomes an airlock when used to maintain a pressure differential, preventing air from moving freely between two environments. Airlocks are commonly found at the beginning of a pressure system or the end of a vacuum system. While a rotary valve can act as an airlock, it’s vital to note that it isn’t a perfect air seal. Some air leakage (or blow-by) occurs, and this can either aid material flow or create challenges depending on the application. Other devices, like double dump valves or butterfly valves, may also fulfill similar airlock functions.

Rotary Valves as Airlock Feeders

Combining both metering and air separation capabilities, an airlock feeder is a dual-purpose application of a rotary valve. Typically located at critical system points, such as the start of a pressure system or the vacuum system’s endpoint, this unique application highlights the unmatched versatility of rotary valves. While other equipment can separate pressures or meter materials, very few devices can handle both tasks simultaneously, making rotary valves indispensable for certain operations.

Key Features of Magnum Systems’ Rotary Valves

Magnum Systems’ rotary valves are engineered for reliability and adaptability. Features such as cast cylinders and endplates, robust welded steel rotors, and versatile rotor designs (both open- and closed-end rotors) ensure long-lasting performance. Additional enhancements, like relieved tips for material buildup mitigation and outboard bearings for smooth operation, demonstrate our commitment to quality and precision.

Our rotary valves are also equipped with adjustable components, such as U-cups, rope packing, and chain-and-sprocket drives, which allow for customization based on the material being handled and the operating conditions. This attention to detail ensures that your system achieves peak efficiency and longevity.

Why Expertise Matters in Rotary Valve Applications

Sizing and applying rotary valves require expertise, a deep understanding of the system, and precise judgment. Factors like fill efficiency, material properties, and pressure differentials must all be considered to ensure optimal performance. Magnum Systems’ team of experts collaborates with you to ensure your rotary valve not only fits but excels within your specific application.

Magnum Systems Builds Rotary Valves for Every Need

The versatility of rotary valves makes them a critical component in countless pneumatic conveying systems. Whether serving as a feeder, an airlock, or a combination of both, the application ultimately dictates their function. At Magnum Systems, we work closely with you to match our rotary valves—including all their innovative design features—to your system’s unique demands.

Most of Magnum’s airlock components, including the housing/casing, rotors, and shafts, are assembled and manufactured in the U.S., thereby alleviating the cost impact of tariffs.

Contact us today to learn how Magnum Systems can help optimize your material handling processes with the most versatile rotary valves in the industry.
