INCLINE AUGER PACKER FOR MODERATELY FLOWING MATERIALS

IAPO

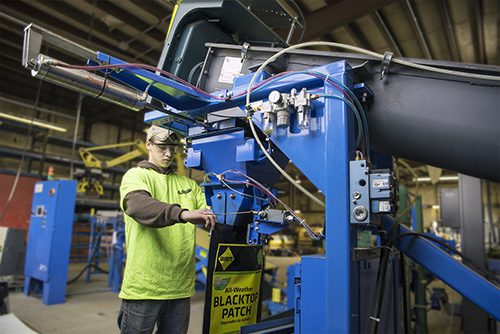

The Incline Auger Packer electronic bagging scale weighs material with extreme accuracy. The incline screw moves the material from the hopper to the bag. It utilizes the T4000 digital controller to monitor bulk and dribble filling rate on the bagger to provide the best combination of speed and accuracy for handling high-density, moderately flowing products such as cold patch asphalt mix.

IAPO FEATURES:

  • Large loading hopper for bulk loading
  • U-trough conveyor transferring asphalt from hopper to scale/bags
  • Taylor electronic load cell weighing system (no beams or pivots)
  • Standard bulk and dribble fill cycle with adjustable speed settings
  • Pneumatic product cutoff gate on auger scale
  • V-clamp provides positive bag holding during fill cycle

IAPO SPECIFICATIONS:

  • Product contact parts: carbon steel, except screw in U-trough is stainless steel
  • Load hopper opening: 72" x 42" fill by front end loader
  • Load hopper construction: carbon steel (painted)
  • U-trough conveyor: carbon steel construction, 304 stainless steel progressive pitch auger, 20 degree operating angle
  • Bags per minute: Up to 6 bpm typical (varies by specific product mix)
  • Bag weight: 40-120 lb. bags (18-55 Kg)
  • Electrical requirements scale: 115 VAC, single phase, 60 Hz
  • Electrical requirements auger: 230/460 VAC, 3 phase, 60 Hz
  • Air requirements: 3 SCFM of 80-100 PSIG (compressed air must be clean and dry)
  • Operating temperature: 32-110 degrees fahrenheit.
